Industrial Robotics
(500-4000mm | 20-120″)
(500-4000mm | 20-120″)

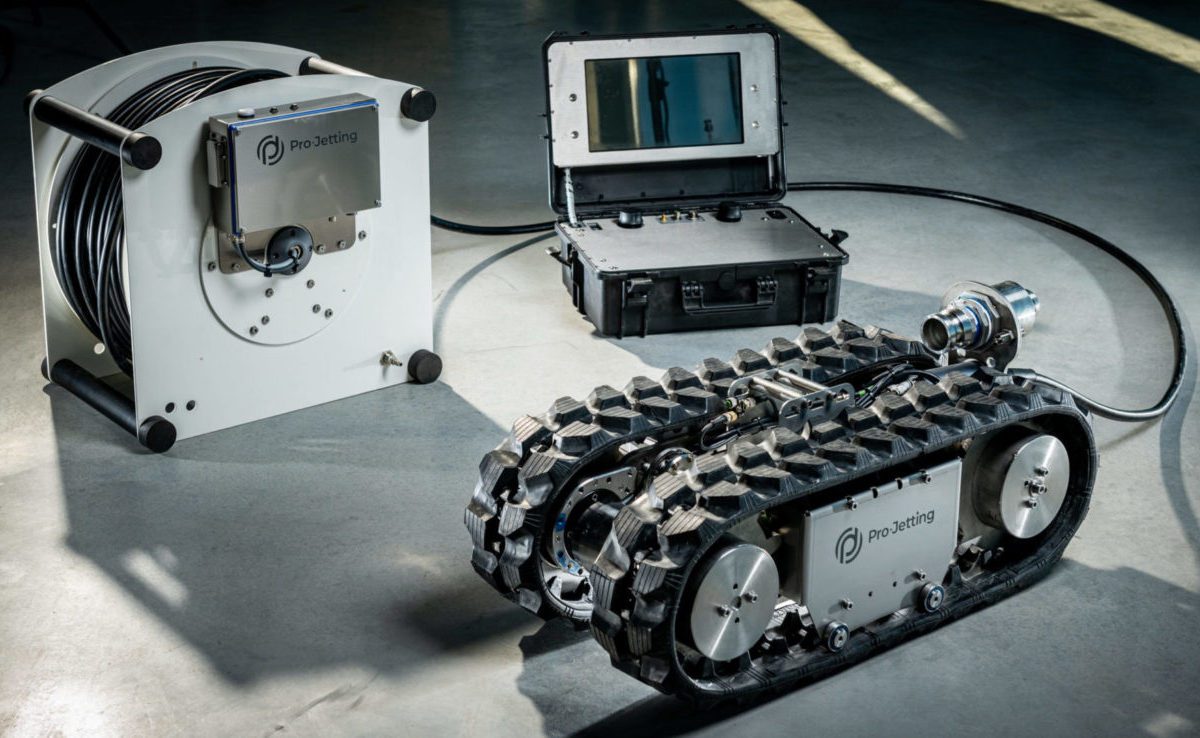

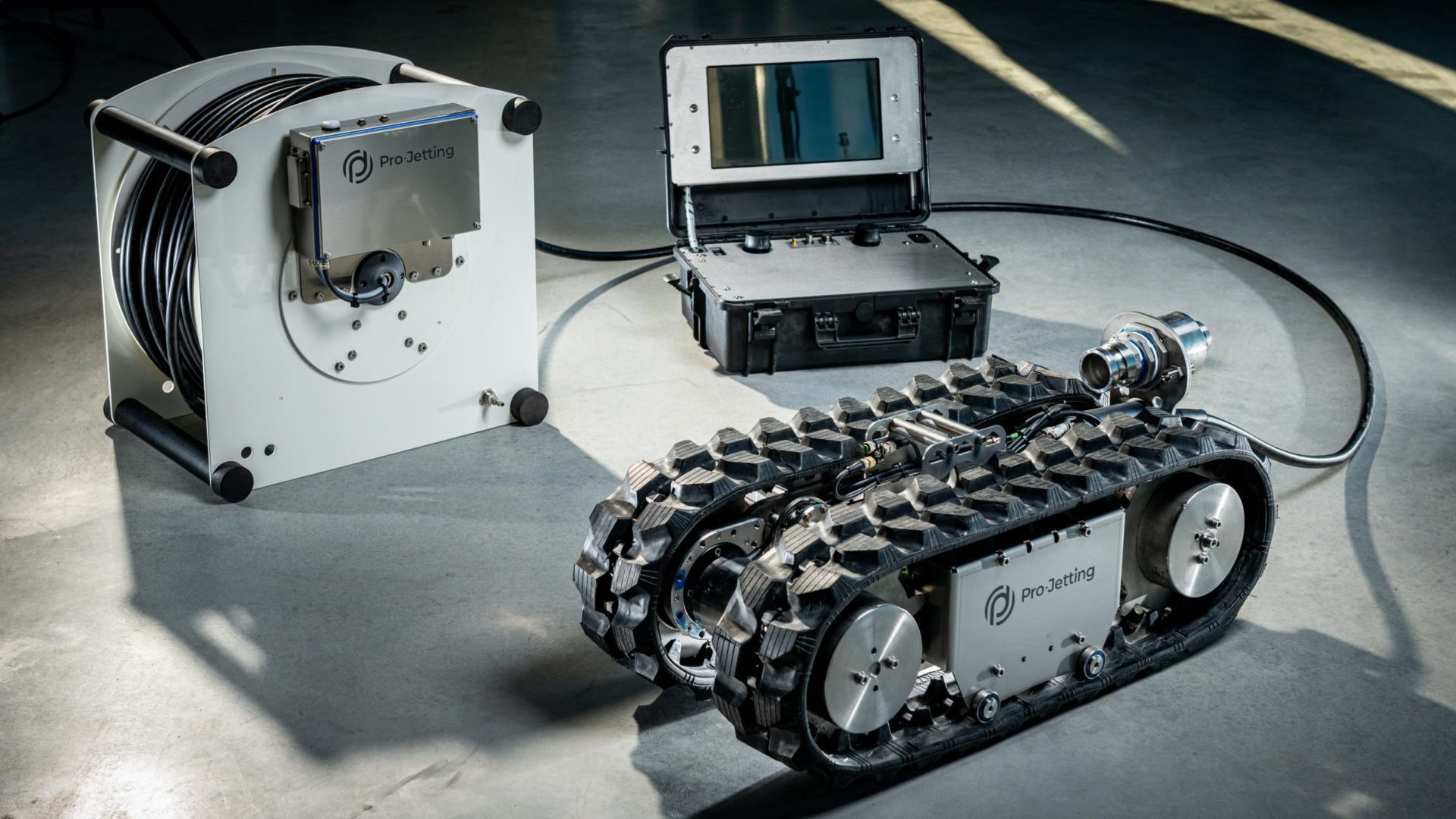

Sewer Robotics offers different types of robotic systems products. All of our robots are compatible with the same control unit and cable reel as the sewer robots.
Our robot system can be used with various job-specific modules for heavy-duty industrial applications. Didin’t find your application? Contact us! Customization is our specialty.
Scope of use
Min. access diameter
Drive
Max. pressure
Max. flow
Max. rotation
Max. temperature
Weight
Dimensions
Scope of use
: 1000 – 3000mm (40-120”)
Min. access diameter
: 400mm (15,7”)
Drive
: Electric
: Water hydraulic (ATEX)
Max. pressure
: 500bar (7,250psi) (ATEX)
: 3000 bar (40,300psi)
Max. flow
: 21GPM (80LPM)
Max. rotation
: 1000 RPM
Max. temperature
: 90°C (194°F)
Weight
: 45kg (99lbs)
Dimensions
: 850x350x400mm
: (33.5x14x 16”)
It just takes minutes to prepare a single R600 robot for a wide scope of different applications with its innovative mechanism to attach various job-specific modules

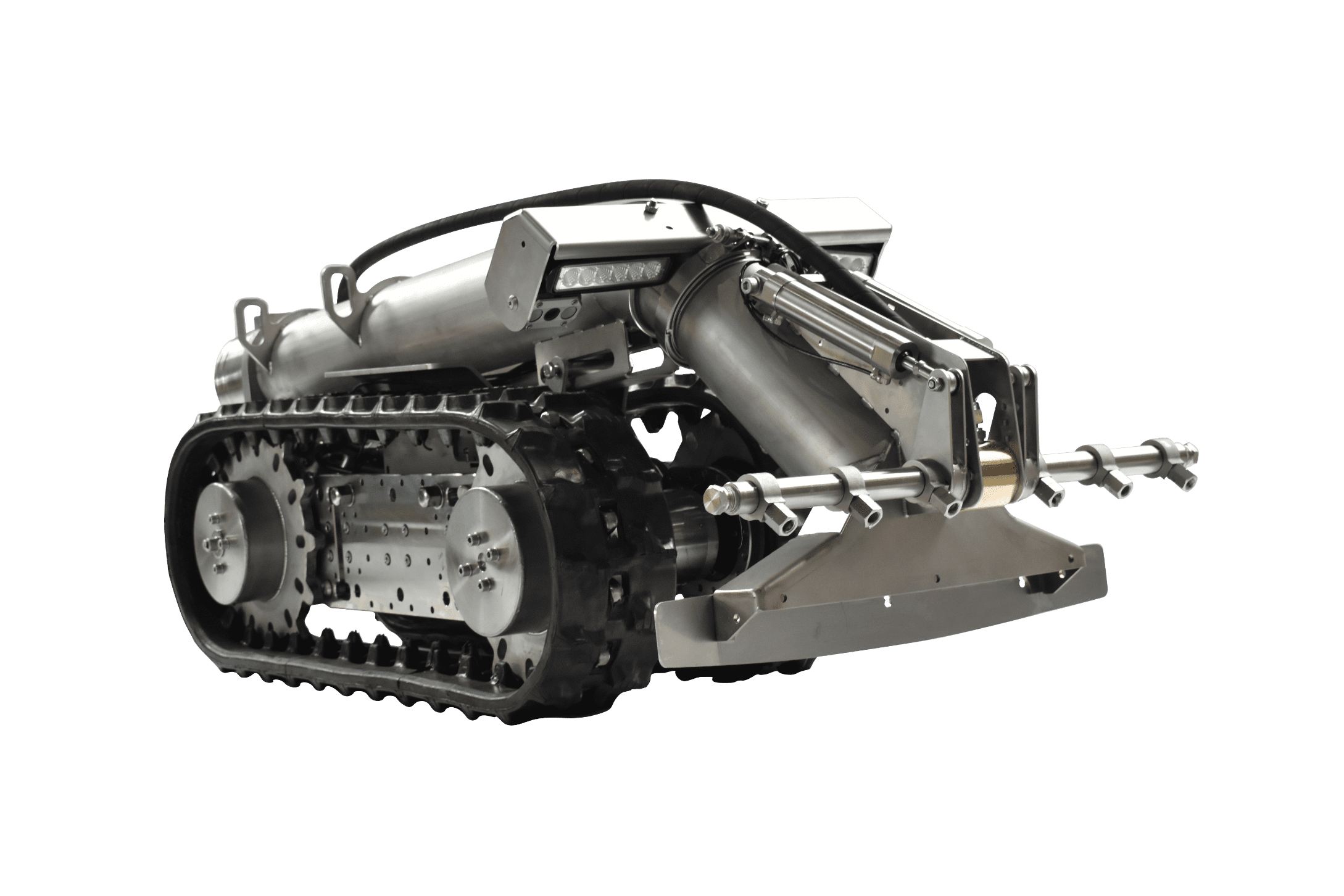

Vacuum Excavation & Suction Sludge or Bulk Waste Removal with movable suction arm, various compatible suction heads and high pressure nozzles.

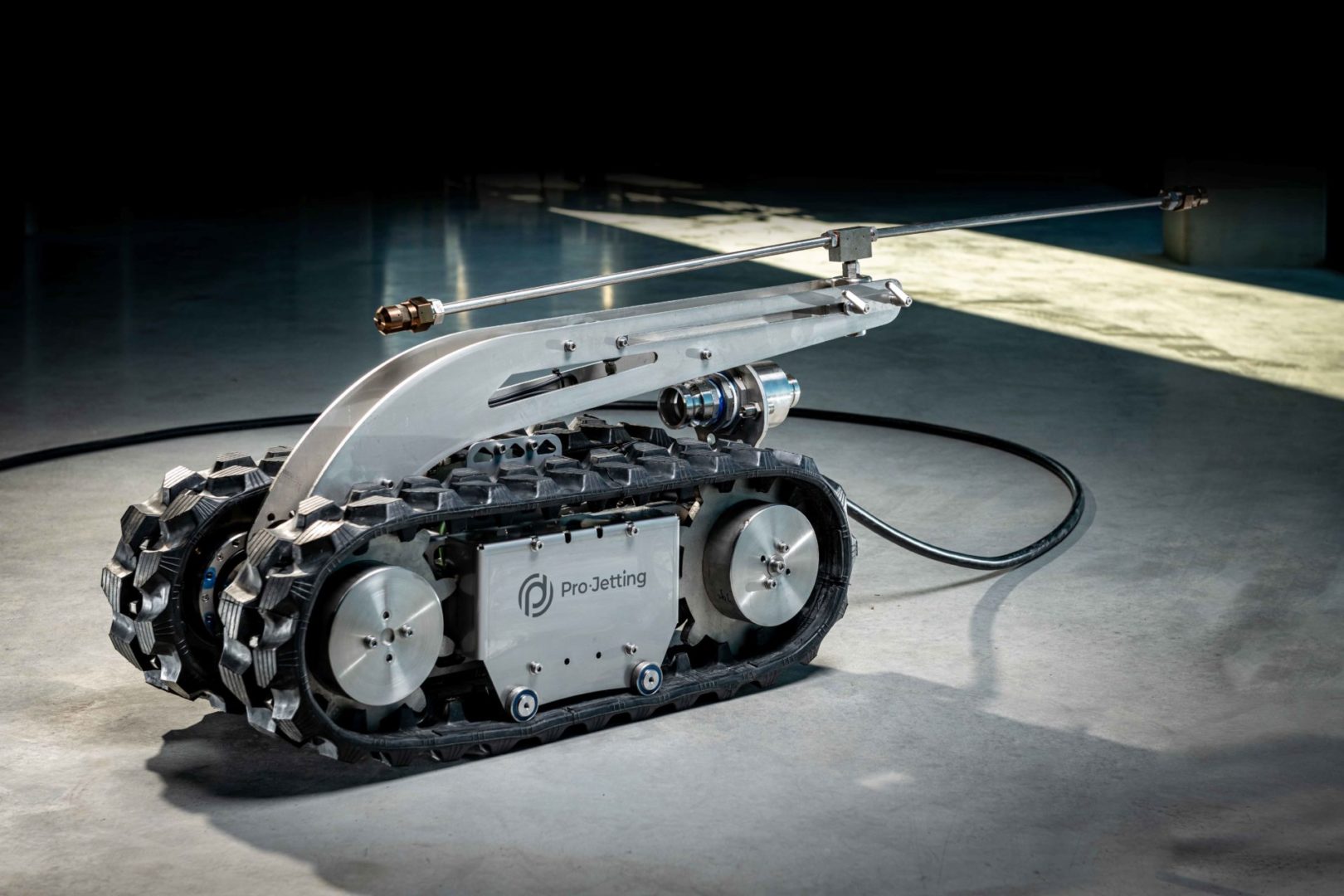

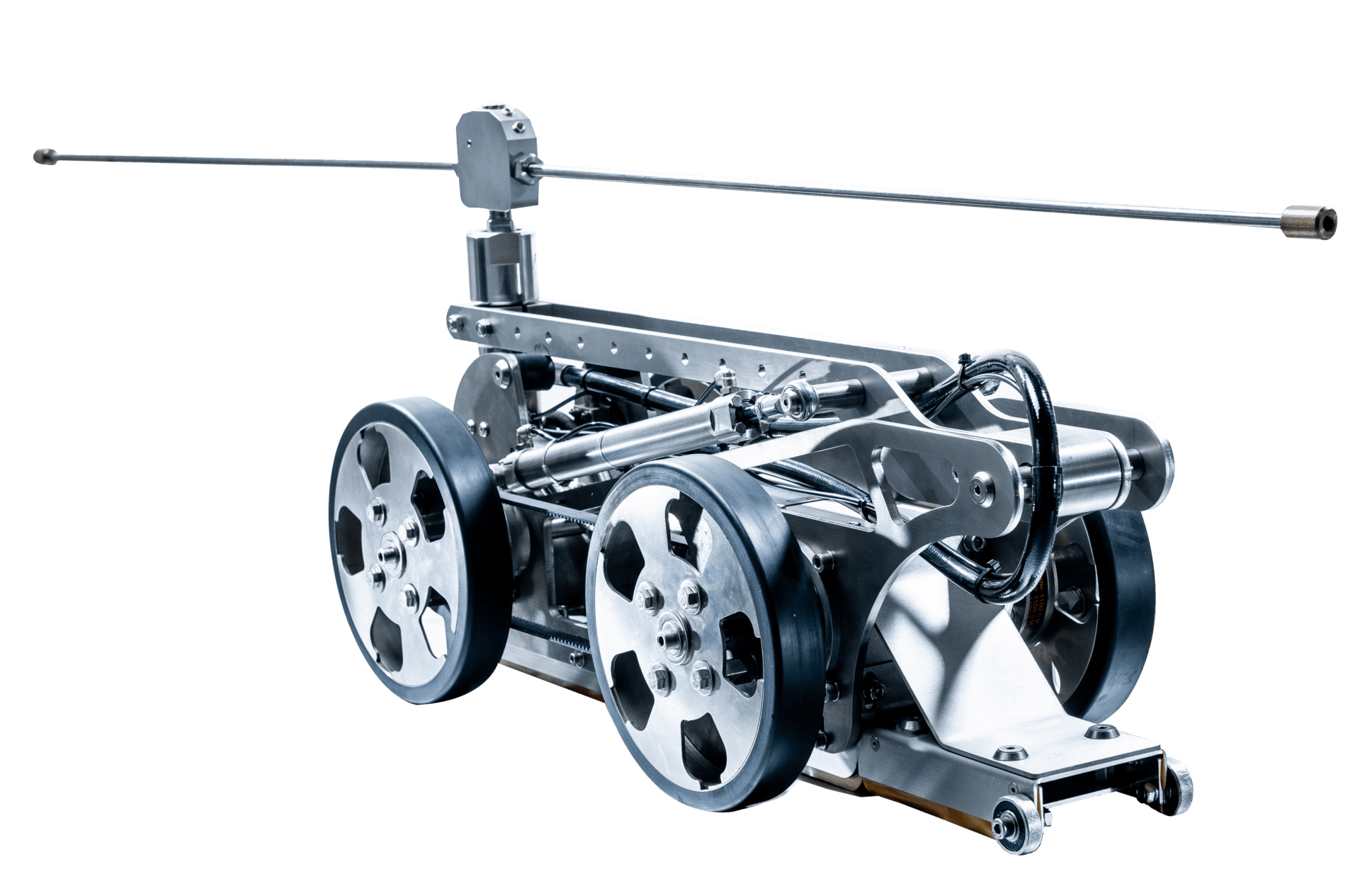

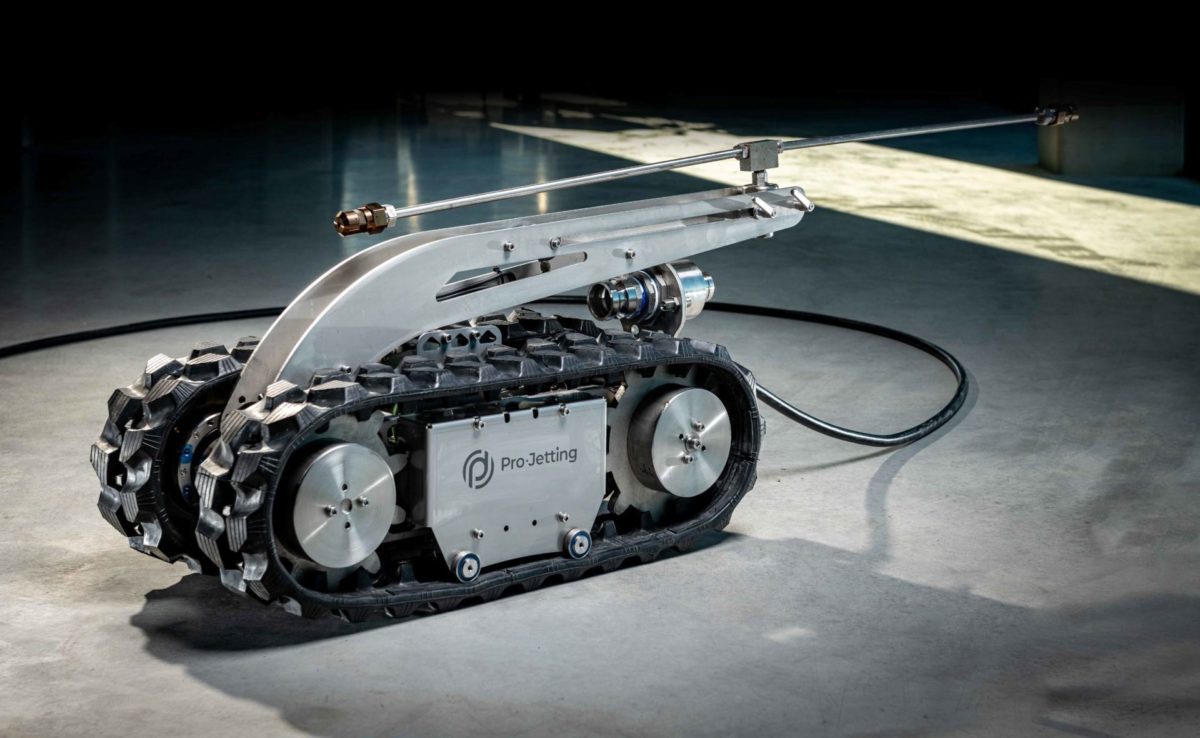

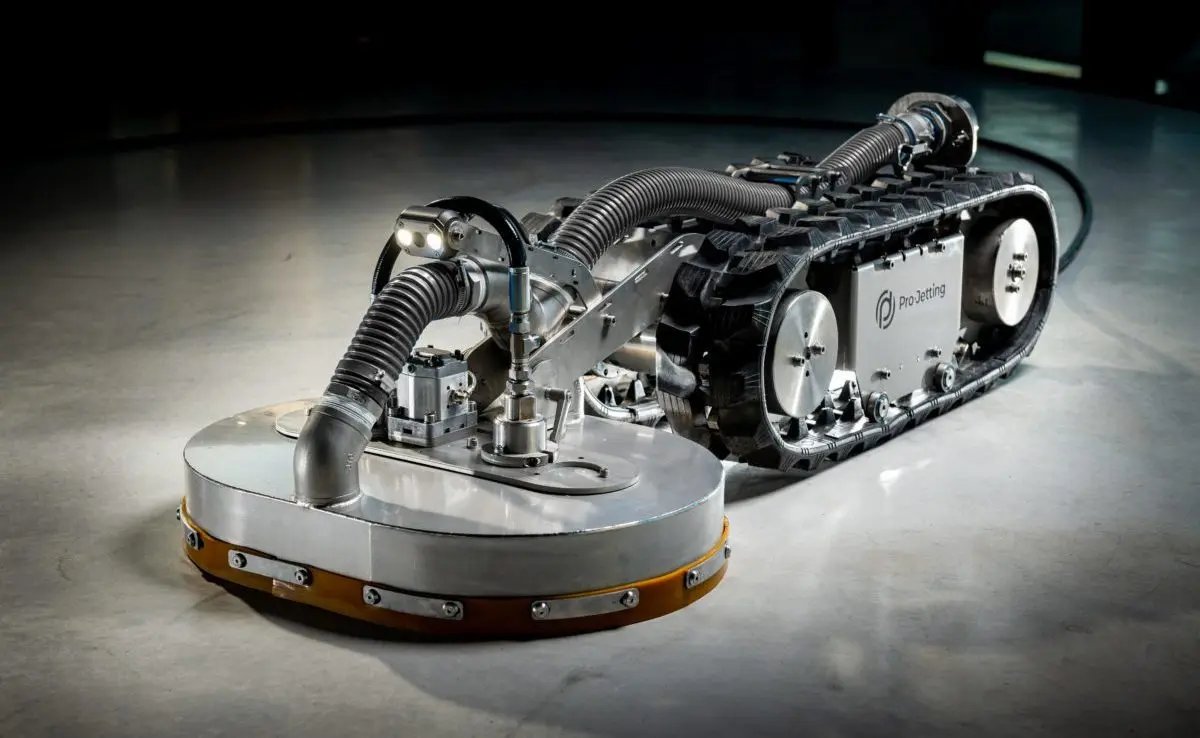

Large Diameter Pipe & Tank Cleaning with foldable arm and adjustable lances rotating close to the tank surface for intense cleaning.
Scope of use
: >500MM (>20”)
Cameras
: Forward facing
: Rear view
Lighting
: Intensity adjustable LEDs
Speed
: 3 – 10kmh (1.9-6.2mph)
Traction Force
: 250kg (550lbs) 2 motors
: 500kg (1100lbs) 4 motors
Weight
: 110kg (243lbs)
Dimensions
: 900x420x300mm
: (35.4×16.5×11.8″)
The powerful R600 can be equipped with either 2 or 4 driving motors that provide 150 or 300 KG towing capacity to take a heavy load or reach far inside pipelines or tanks.
The modular base platform is made off durable stainless steel and adjustable in length and width to adjust to various applications.
The R600’s programmable outputs allow easy customization for specialty jobs. Add auxiliary cameras and lighting, additional sensors and electronic- or pneumatic driven movements.
-Or- a completely custom tool can be developed for your specific application.
Various job-specific modules can be easily exchanged to adapt the robot for different applications via its twist-and-lock mechanism.

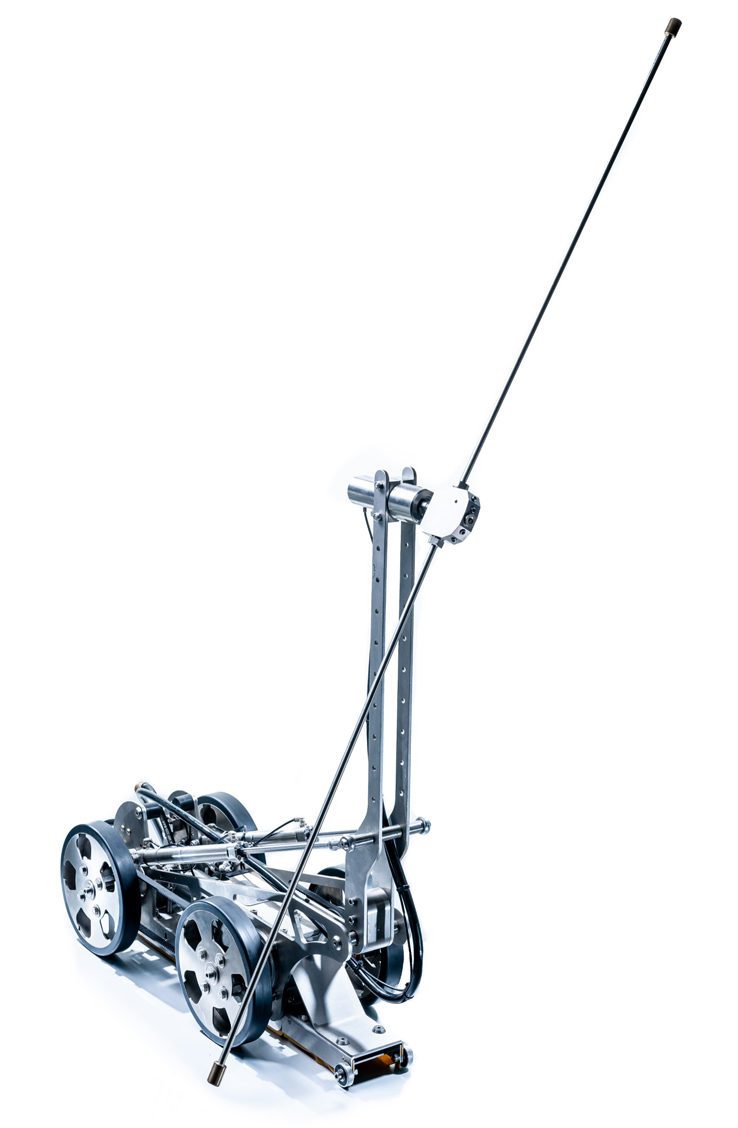

The R600 has a powerful linear actuator to raise the boom, cleaning arm or dome. This actuator is operated with compressed air and features an enclosed hydraulic circuit to combine strength and precision.
